The gas meter of the Internet of things is a comprehensive management platform for gas measuring instruments based on the special network of the Internet of things of mobile operators, which adopts the special mobile communication module of the Internet of things, takes the membrane gas meter as the base meter, and installs the remote transmission electronic controller to realize the remote transmission and control of data. It is the best scheme for gas companies to realize intelligent management to support mobile app query payment, real-time monitoring management, alarm function and big data analysis function, which greatly improves the management efficiency of gas companies.

    Internet of things gas meter can cooperate with management system to realize card free prepayment, remote valve control, step gas price, price adjustment and other functions. It is required that meter end and management system can realize prepayment function, and the data of management system shall prevail finally.




燃气表物联网

   The gas meter of the Internet of things is a comprehensive management platform for gas measuring instruments based on the special network of the Internet of things of mobile operators, which adopts the special mobile communication module of the Internet of things, takes the membrane gas meter as the base meter, and installs the remote transmission electronic controller to realize the remote transmission and control of data. It is the best scheme for gas companies to realize intelligent management to support mobile app query payment, real-time monitoring management, alarm function and big data analysis function, which greatly improves the management efficiency of gas companies.
    Internet of things gas meter can cooperate with management system to realize card free prepayment, remote valve control, step gas price, price adjustment and other functions. It is required that meter end and management system can realize prepayment function, and the data of management system shall prevail finally.

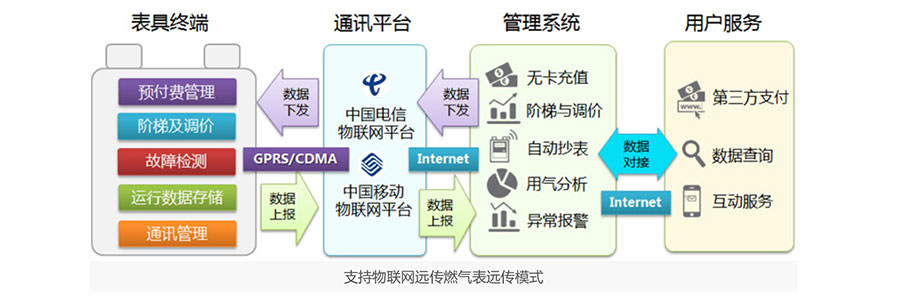

Schematic diagram of the overall scheme of Internet of things gas meter 1

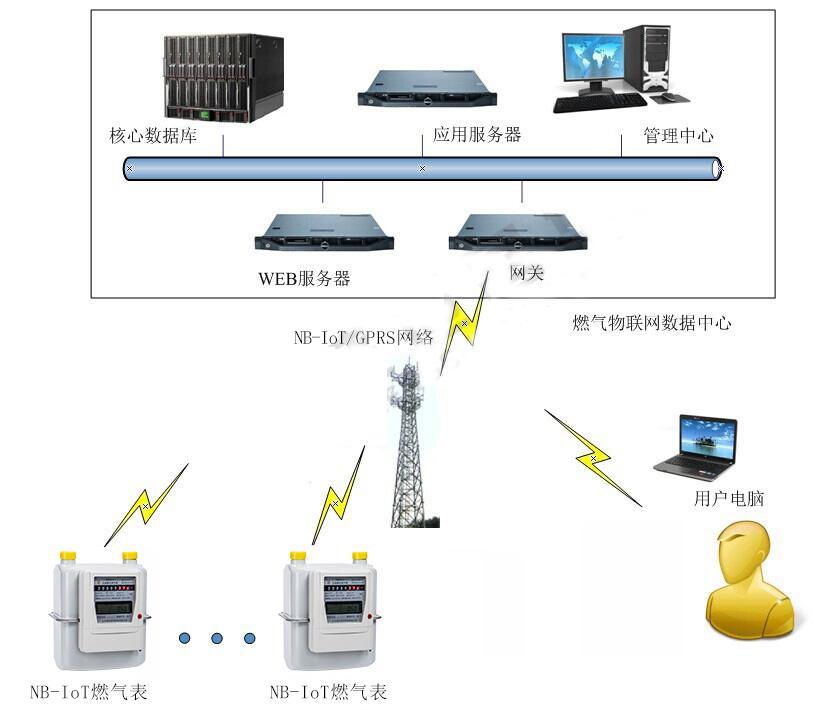

Schematic diagram of the overall scheme of Internet of things gas meter 2

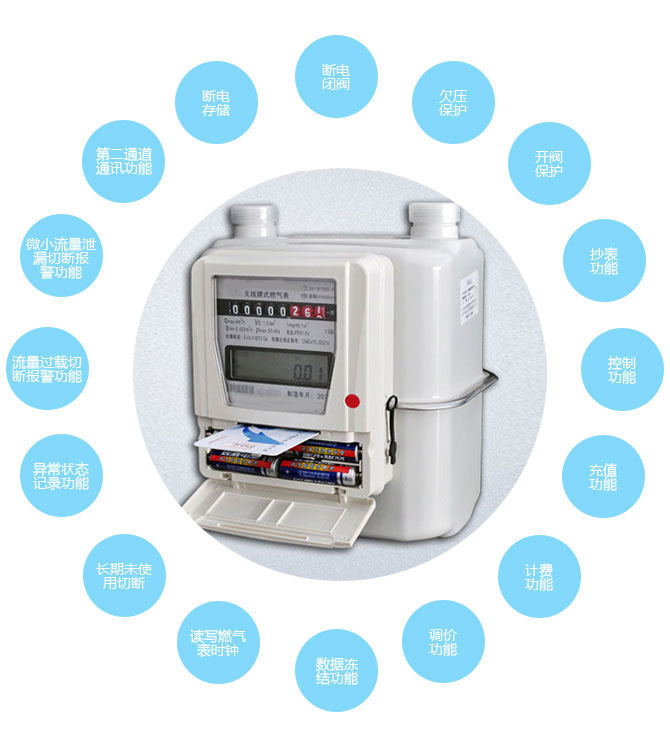

Table with key technical functions

1)Mobile disassembly alarm function
When the gas meter moves or shakes a lot, the gas meter will send out an audible and visual alarm, close the valve and report the fault to the management system of the gas company, completely preventing the gas users from disassembling the meter and stealing gas.

2)Valve opening protection function
When the valve of gas meter is closed due to insufficient residual quantity and other faults, the meter has the function of opening and opening valve protection, that is to say, the meter valve can only be opened under manual intervention. After recharging and clearing the corresponding faults, you need to press the "query" button to activate and open the meter valve. The purpose of this design is to carry out manual protection intervention on the valve opening action of gas meter on the premise of confirming safety, so as to avoid uncontrollable situation.

3)Dual power supply technology
The dual power supply scheme of built-in long-term lithium battery (with a service life of more than 10 years) and external dry battery is adopted. The two power supplies are automatically switched to ensure the reading of data state and the control of valve of gas meter without external power or when the external dry battery is insufficient.

4)Second management channel function
The second management channel refers to the information transmission channel which manages the meters through other data transmission modes in addition to its own GPRS data communication management function. In addition to communication management through GPRS data, this series of Internet of things meters can also set parameters and control valves through infrared and Bluetooth second channel management equipment. At the same time, in order to ensure the normal use of the meter, we also installed the IC card reading slot as the second recharge channel for users, which will not affect the normal use in the case of poor communication.

5)Historical data saving function
The meter keeps the data of user meter every day for 12 months.

6)Remote data reading and on-off valve
It can read the status information of the user's meter and control the status of the meter's valve through the background of the management system of the gas company. It can set the function of regularly uploading the data. When the internal clock of the meter runs to the specified time, it will upload the relevant information of the meter;

7)Card free prepaid recharge function
It can be recharged in the form of no card prepayment at the gas meter end, such as APP, Alipay WeChat, online business hall, online banking and other online recharge methods.

8)Step gas price function
The gas price of the Internet of things gas meter can be divided into four grades according to the gas consumption, and the time price parameters can be set. The step pricing function can be realized according to the user's consumption of each natural month or multiple natural months. The gas meter will settle according to the rules of the step price, and display the current step consumption, price, remaining amount and other parameters.

9)Fault tolerance mechanism of data upload on time
If the data is not uploaded successfully at one time, the meter will wait for a period of time and try to send the data again.

10)Network timing of high precision clock chip
The hardware clock with an accuracy of ± 5ppm is used inside the meter to ensure that the accumulated clock error of the whole year does not exceed 10min. In addition, the meter will carry out network timing when logging in the system every time, so as to ensure that the clock of each meter is accurate without any deviation.

11)Data protection and security
The data can be saved for a long time, free from external interference, low voltage, power failure, battery replacement and other conditions, and the data adopts 64 bit dynamic encryption (DES) to ensure the safety and reliability of the data.

12)Fault self diagnosis and alarm prompt function
For the IOT gas meter equipped with LCD screen, the corresponding dislocation code display and buzzer alarm prompt can be used in different states, and the detected gas meter fault and user's illegal operation can be self protected.

Alarm prompt function
1) When the voltage of the external battery is insufficient, "change battery" is displayed;
2) When the remaining gas volume is less than 3m3 (this value can be set), the buzzer will give an alarm when the gas consumption is 0.1m3, and "please pay" will be displayed when pressing "query";
3) When the remaining gas reaches the set value, the control valve will be closed to prompt;
4) When the remaining air volume is 0, close the valve and stop the air supply.

 Fault detection and protection function
1) Power supply undervoltage protection: when the power supply voltage is detected to be lower than the specified value, the gas meter will immediately close the control valve, cut off the gas supply, stop the electronic counting, and record the occurrence time of power supply undervoltage;
2) External magnetic field attack protection: when the counting function of the gas meter is affected by the external magnetic field attack, the gas meter will immediately close the control valve, cut off the gas supply and stop the electronic counting, and record the occurrence time of the external magnetic field;
3) When the gas meter detects that there is a card reading error, the LCD displays "abnormal card reading" and displays corresponding codes according to different situations.

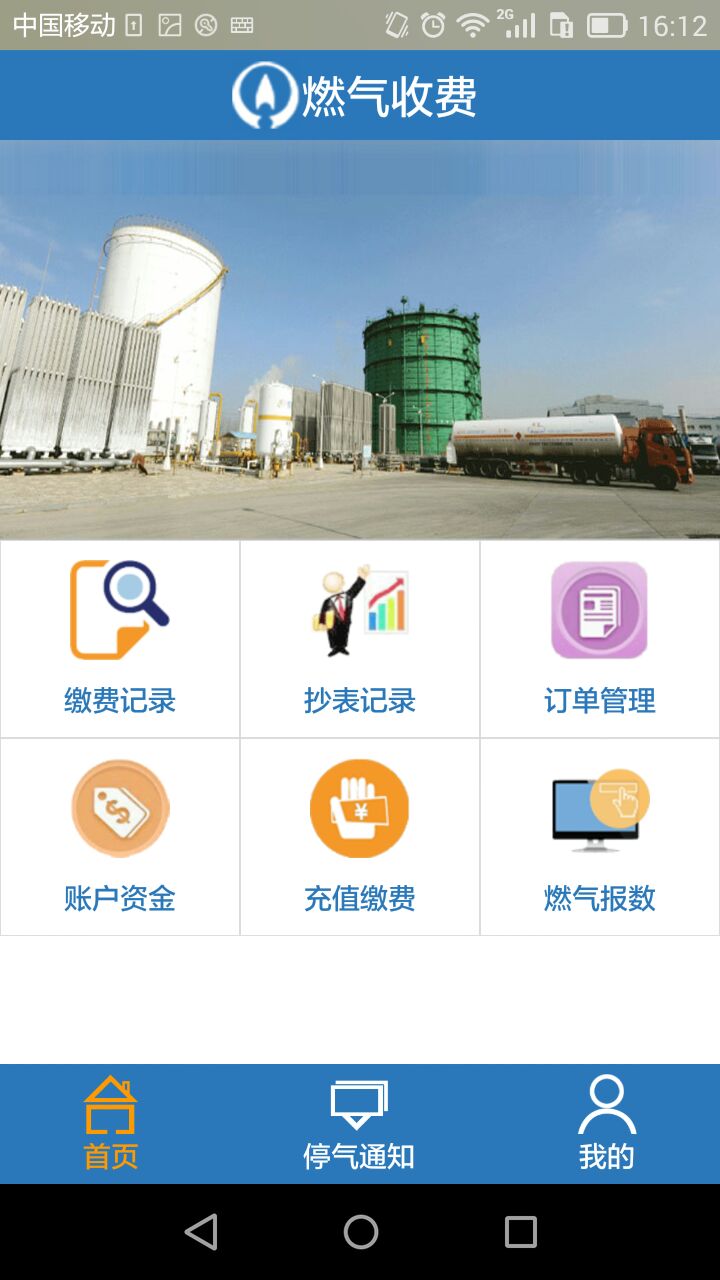

Mobile app interface

物联网燃气app


Main parameters of Internet of things gas meter

0.016 Measurement level Basic error limit 35835;.259681 26368; 29992;<28201; <24230 and 22806;.24275;.23610;.23544 26041;<243355; 20316;<30005;. V DC 5.0V.65374; 7.0V 24577;<300055; 38400;.38376;.21487;.38752; 38047;<35823;<24046; 26041;<243355; 25968;.25454;.25220;.35835;.20934;.3083030;
model   G1.6 G2.5 G4
Maximum flow m h/h 2.5 4 6
Minimum flow m h/h 0.016 0.025 0.025 0.04 0.04
level 1.5
  Qmin No 8804Q
Qmax Time 0.1Qmax
26368; m1 999.999
26368; <211471; kPa 10
24635;.21387;.21147;.25439;.22833; Pa 8804250
23494; 2353;<246155; kPa 20kPaa 21387;<21147;<19979; min 20869;<27844;
38450; 26631;<20934;   EXib IIBT3 Gb
36718; dm 0.2
20351; >8451; 10-65374;+50
20171; 26465;<202144;   21508; -31867;<276682;12289x31354;<2766828;26080;<33104;<34432;<24615;<20307 /td>
36827;<32441 mm M30 Total 2
36827;<24515;<36313131319; mm 130
mm H220xW205xD161
37325; kg 2.2
20379;  433410;<30897;<24615;<30005;<27744;65288806;65289;+ 1am 33410;>38146;<30005658869;>326928
24037; V colspan="3">DC 5.0V
24037;"20316;"30005;"(22343) mA 880490
38745; uA 880420
37319; 26679;<26041;<243355;   21452; <24178;<31783;<31649>
  36830; <32493;<24320;<20851;<27425;<259681;<19981;<2011000x27425
20851;<38400; 26102;.3881 S 653080.5
38400;<38376;<21387;<24037;<20316;<300055;<21387;<33539;<22260 /td> V V 2.5~7.0
30005;<24180;<384801   38146;<30005;<27744;65292;E20351;<29992;<2351; <21629;>201102401
26102;20998;26376 6530810
38450;.252;.31561;.32423   IP65
36890;  GPRS25968;
19968;.27425;.25220;.34920;.25104;.21151;   98.5%
  99

Installation dimension parameters
Installation dimension parameters




Product specifications

H

W

D

E

A

weight

Steel shell

224mm

195mm

67mm

168mm

130mm

2.2Kg

Aluminum shell

224mm

215mm

74mm

175mm

110mm

2.1Kg
